Liner Compressor 3.0 & Curing Caps

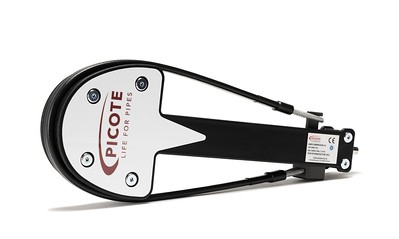

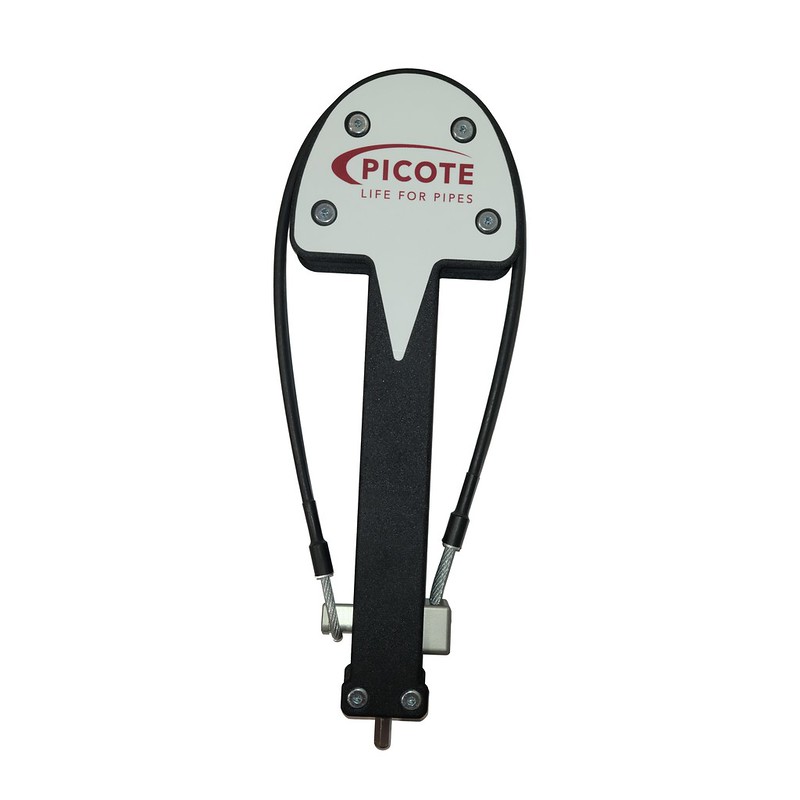

The Picote Liner Compressor 3.0 tightly clamps the end of the liner to prevent it collapsing from loss of pressure while you replace the inversion equipment with a Curing Cap or Picote Cannon Fast Cap.
Uses and benefits
Liner Compressor 3.0:
- Use to clamp DN50-150 (2-6”) liners.
- Securely and tightly clamps and seals the liner.
- Tighten the cable of the Compressor conveniently with a battery operated drill or a manual tool (10mm loop/wrench).
- Set the Tightening Cable around the liner, lock it to position and tighten. After the Curing Cap and air pressure are attached, just loosen the cable and remove.
- Lightweight and easy to operate.
- Securely holds the liner with no air leakage.
- Tightening Cable (spare part) is easily replaced when needed.
Curing Caps, Fast Caps & Smart Heat Caps:
- Quickly & easily replace the Inversion Drum so that you can install multiple liners
- Fast Cap fits the Picote Cannon, available with or without hole for CCTV cable access.
- Mini & Maxi Smart Heat Curing Caps enable the use of either the Mini or Maxi Smart Heat cable to accelerate cure times.
Technical spec
|
Liner Compressor 3.0 |
|
|
Category |
Measurement |
|
Size |
151x442x45mm (5.9x17.4x1.7”) |
|
Weight |
1.9kg (4.2lbs) |
|
Product Number |
Description |
|
2350050150 |
Liner Compressor 3.0 |
|
N/A |
Tightening Cable (spare part) |
