Pipe Cutter

Pipe Cutter

When lining towards a main or connection it is possible that the installation may inadvertently extend past the end of the pipe. This can create blockages and backups which can cause significant damage and expense.

In these situations, the Picote Pipe Cutters are fantastic tools to quickly and easily remove an overshot lining that has extended into a connection. Simply attach the Pipe Cutter to your Miller and push it in place from the lateral and quickly cut off the excess lining.

There are two Pipe Cutter models – the Standard and the Ultra Flex. Both the Standard and Ultra Flex models feature panels with hardened steel button teeth and either can navigate bends up to 90°.

Specification Images & videos Downloads Where to use Accessories
Uses and benefits

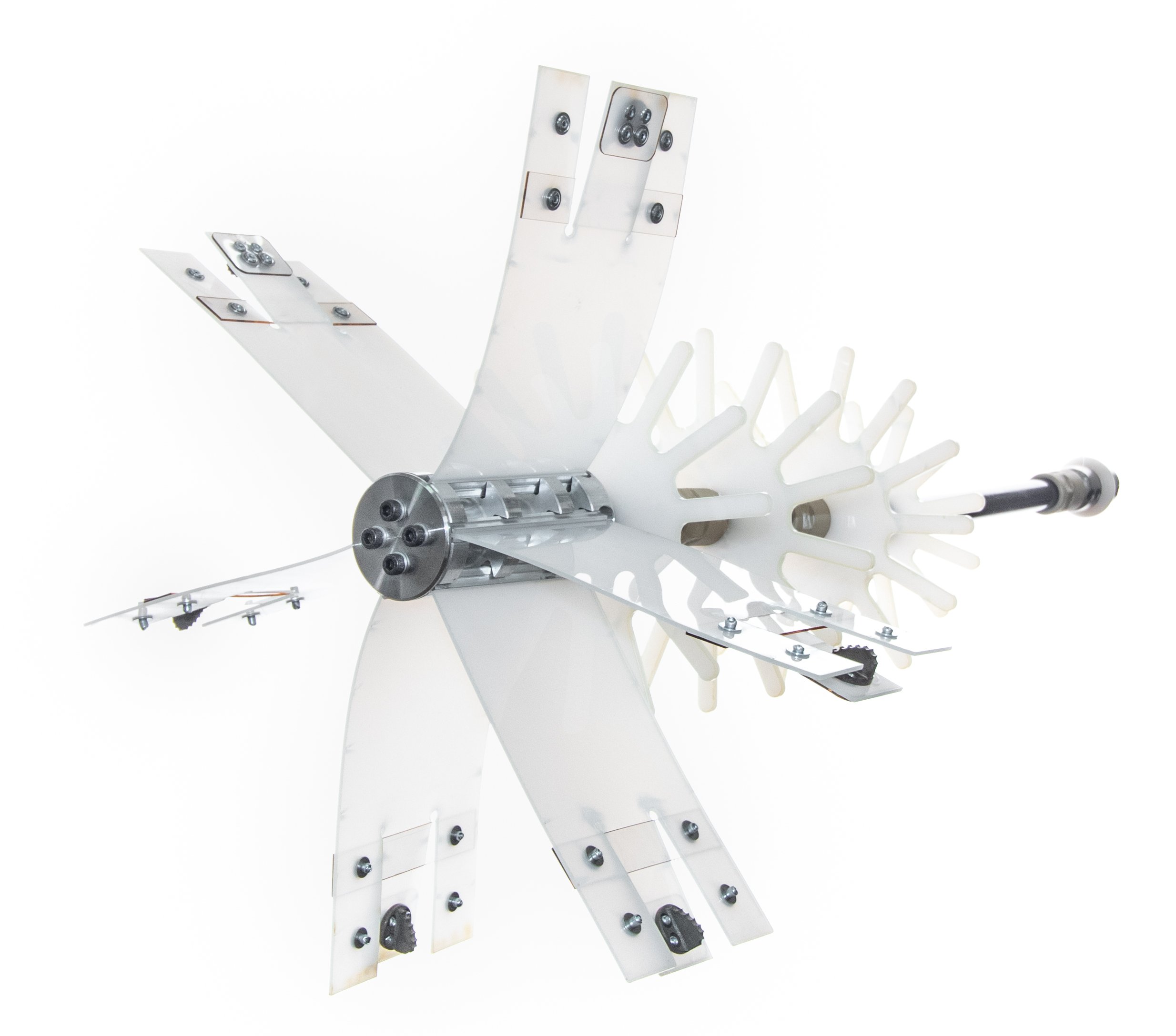

  • The Pipe Cutter Ultra Flex is self-centering and designed for cutting off overshot linings that occur shortly past a bend.

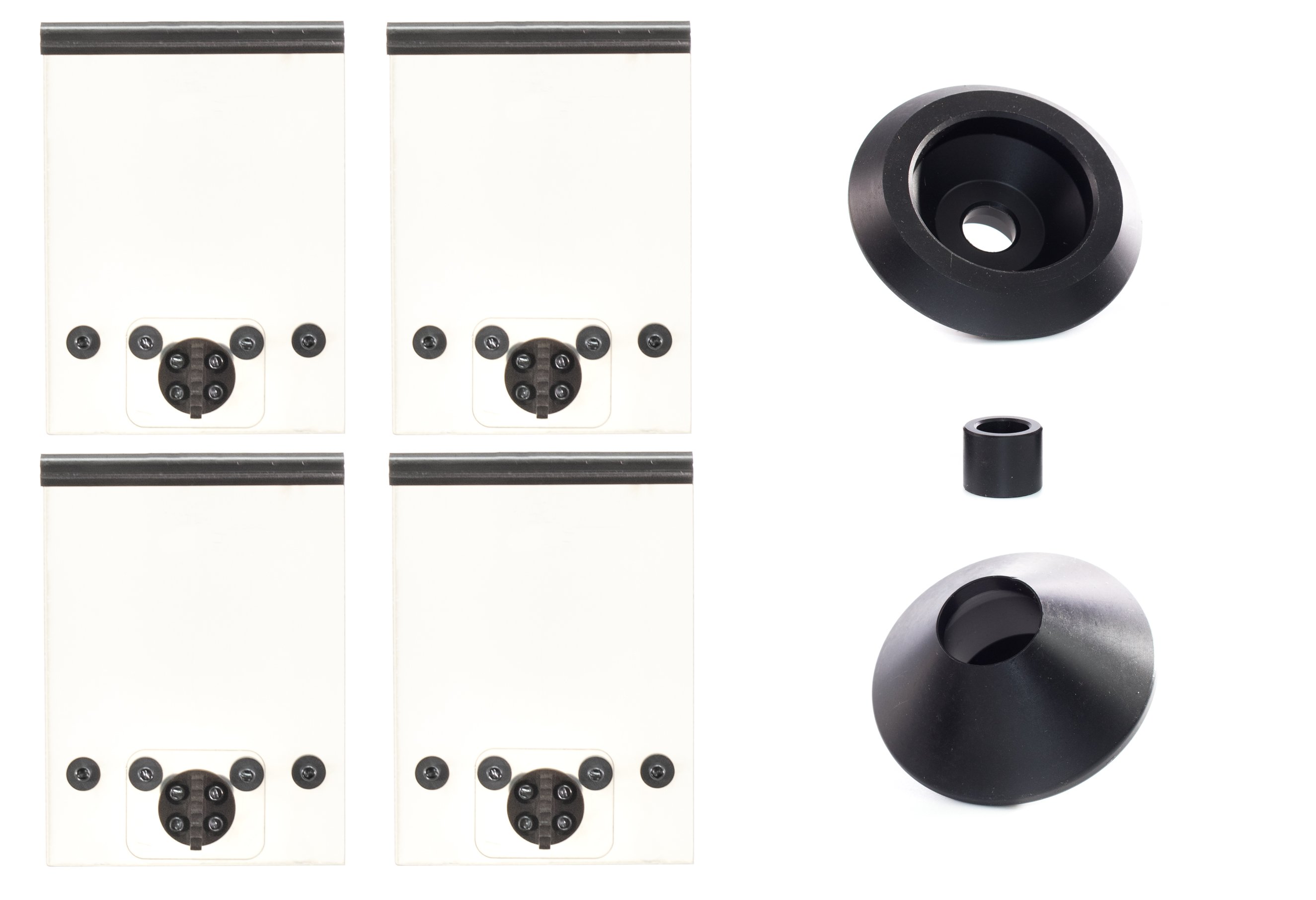

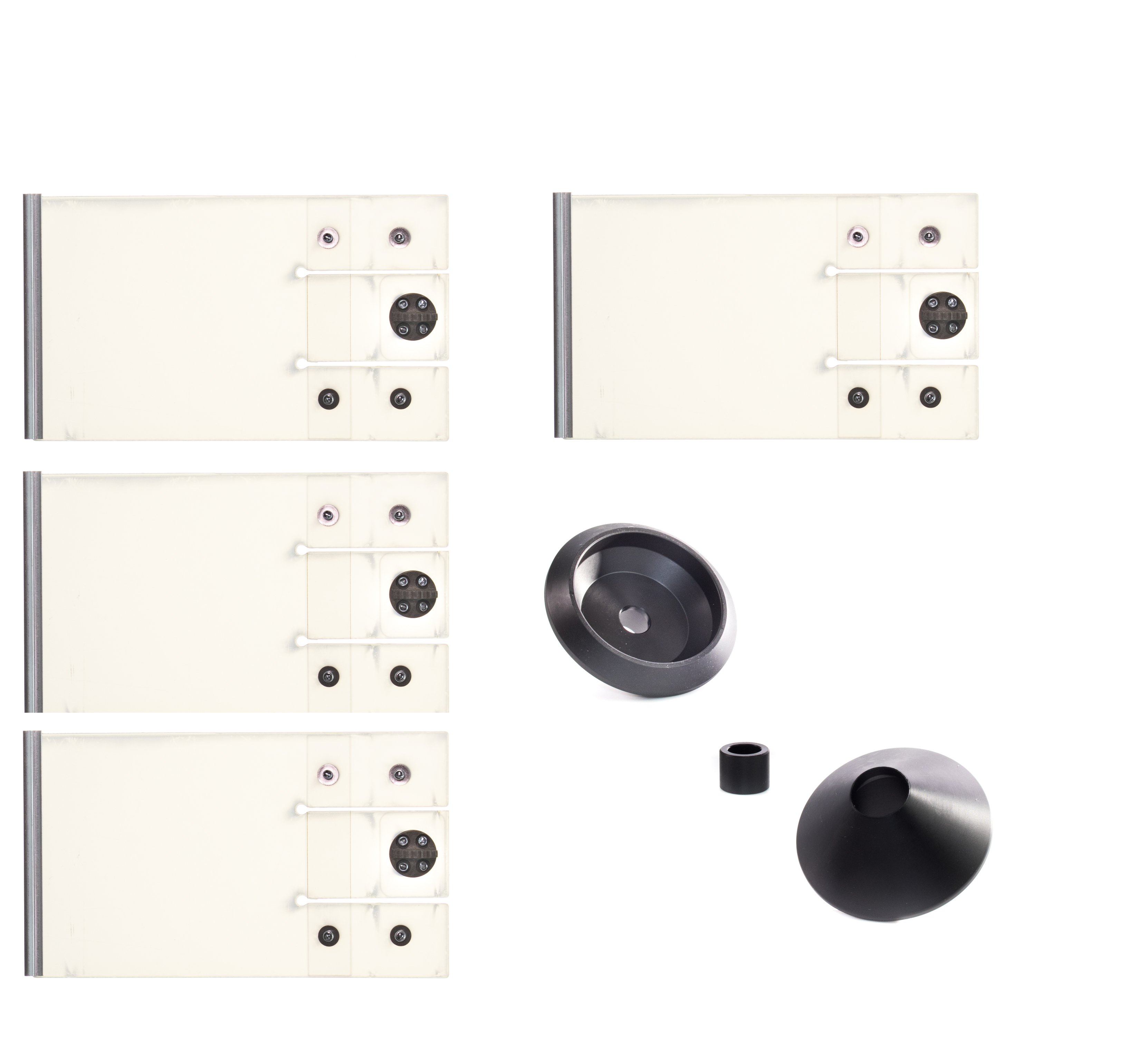

  • The Standard Pipe Cutters are sold as a panel pack that is combined with a Smart Cutter™ hub to create the final assembly.
  • DN70 (3”) Pipe Cutter can be used with the Mini, Midi, Super Midi, or Maxi Miller.
  • DN100 & 150 (4 & 6”) Pipe Cutters can be used with the Midi, Super Midi, or Maxi Miller.
  • DN200 (8”) Pipe Cutter Ultra Flex can be combined with the Midi or Maxi Miller.
Technical spec

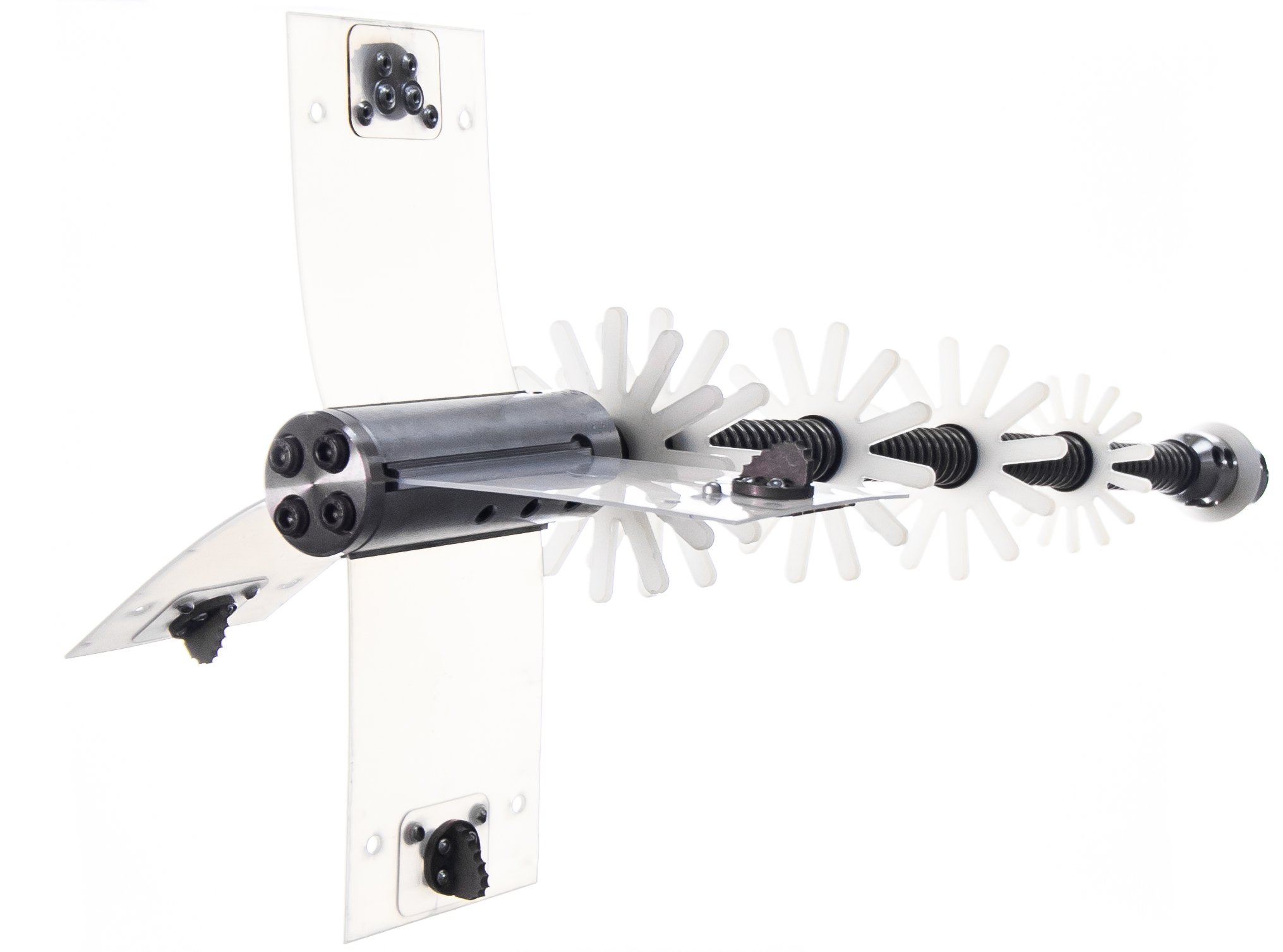

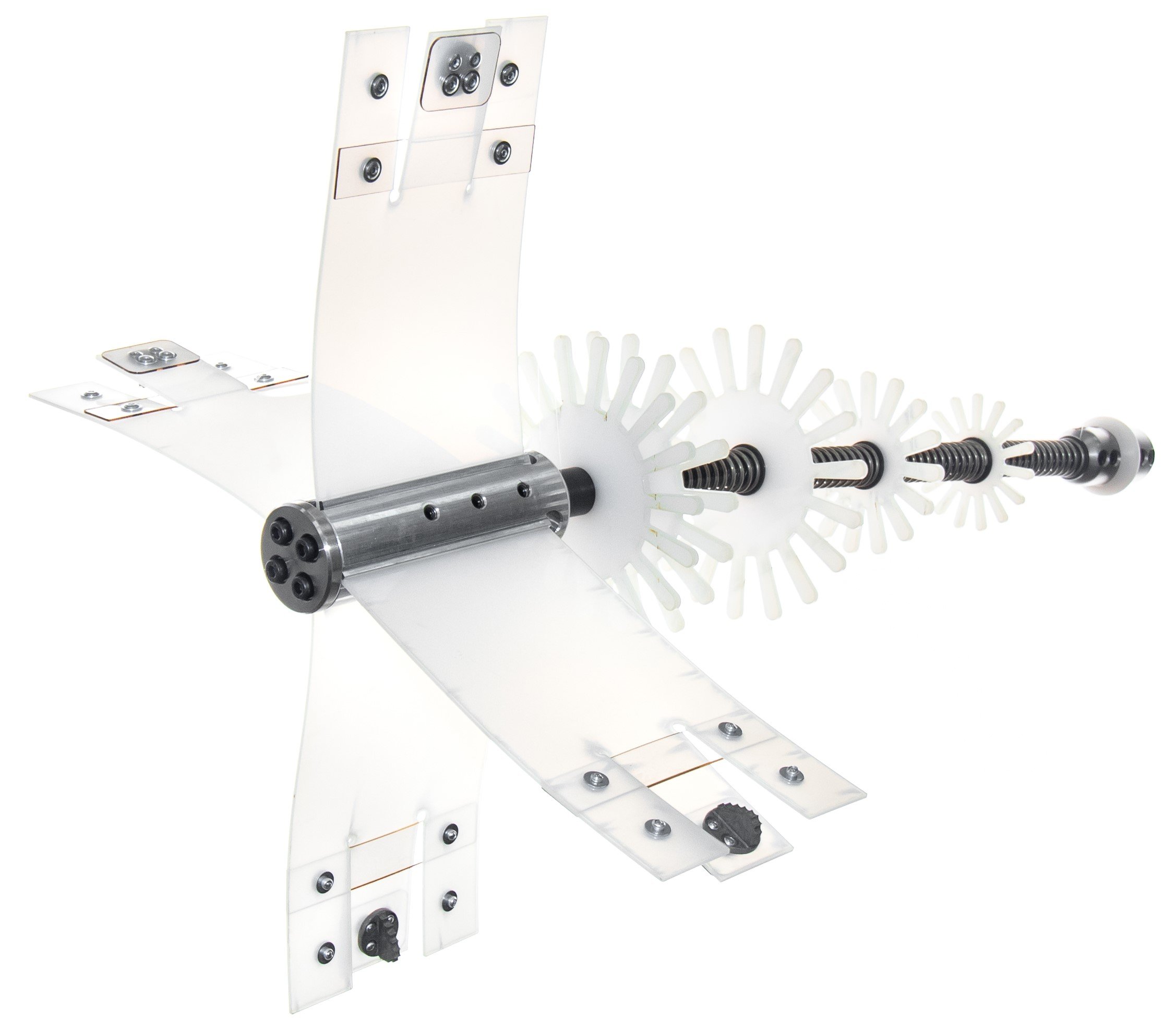

Standard Pipe Cutter
Pipe Size Shaft Size (mm/inches)
DN70 (3") 8mm (1/3") & 12mm (1/2")
DN100 (4") 12mm (1/2")
DN150 (6") 12mm (1/2")
Pipe Cutter Ultra Flex
Pipe Size Shaft Size (mm/inches)
DN100 (4") 12mm (1/2")
DN150 (6") 12mm (1/2")
DN200 (8") 12mm (1/2")





Downloads

US Catalog
Download file
Metric Catalogue
Download file

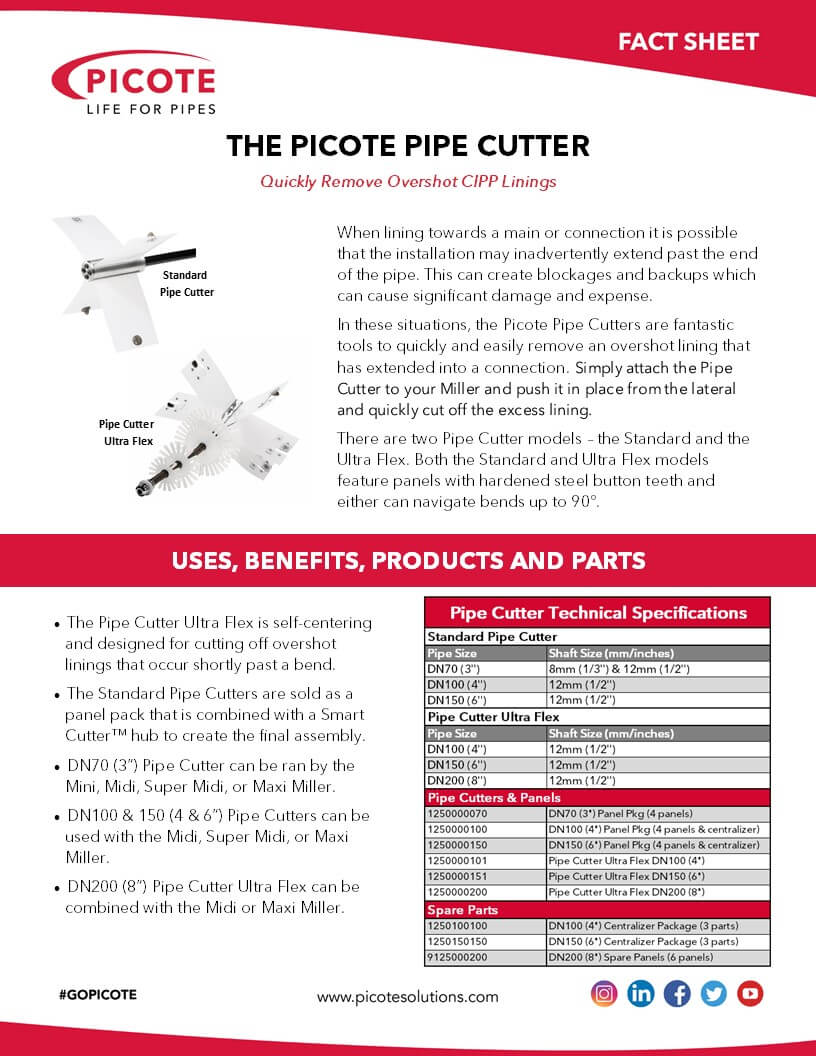

Fact sheet
