    Picote Heater

    The Picote Heater is designed to speed up drying wet pipes and for decreasing the time between coats for Picote Brush Coating™ applications.

     It provides a constant, powerful volume of heated air at a maximum air temperature of 55°C (131°F), to protect coating project quality and safety. Features an automatic thermal cut-off on both the motor and the heating element for added protection.

     The Smart Heater comes with a 5m (16’) high strength, temperature resistant supply hose

    Contact us
    Specification Images & videos Downloads Where to use Accessories
    Uses and benefits
    • Reduces the time needed for drying wet pipes and decreases the time between coats and final cure time for brush coating projects.
    • Lightweight, compact, and easy to transport.
    • Automatic thermal cut-off on both the motor and heating element for added protection
    • Built-in GFCI (110V version).
    • Available in 110 and 220/230V versions.
    Technical spec
    Size 287x205x18mm
    11x8x7"
    Weight 5.8kg (12.8 lbs)
    Hose Length  5m (16')
    Pipe Diameters DN50-300 (2-12")
    Max Air Volume (m3/min) 2.2
    Max Air Capacity (m/sec) 75-100
    Maximum Temperature 55°C  (131°F)
    Output (W) 1600
    Power UK/US: 110-125, 15 Amp
      EU: 220-230V, 16 Amp
    IP Class 23





    heater_hose

    Downloads

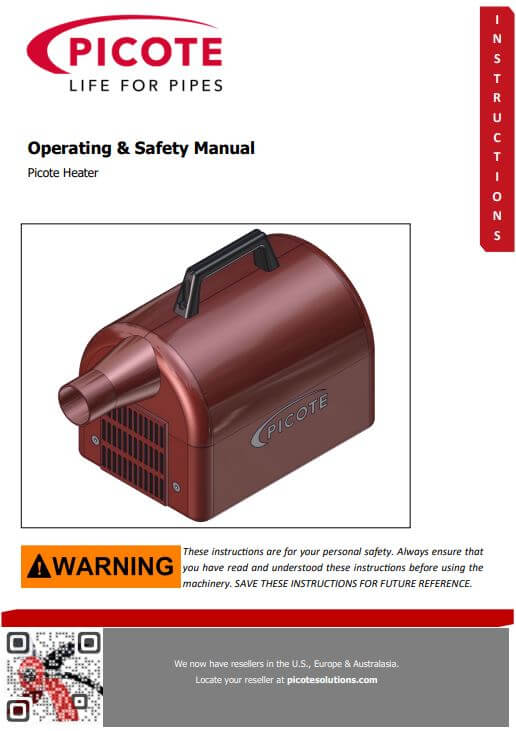

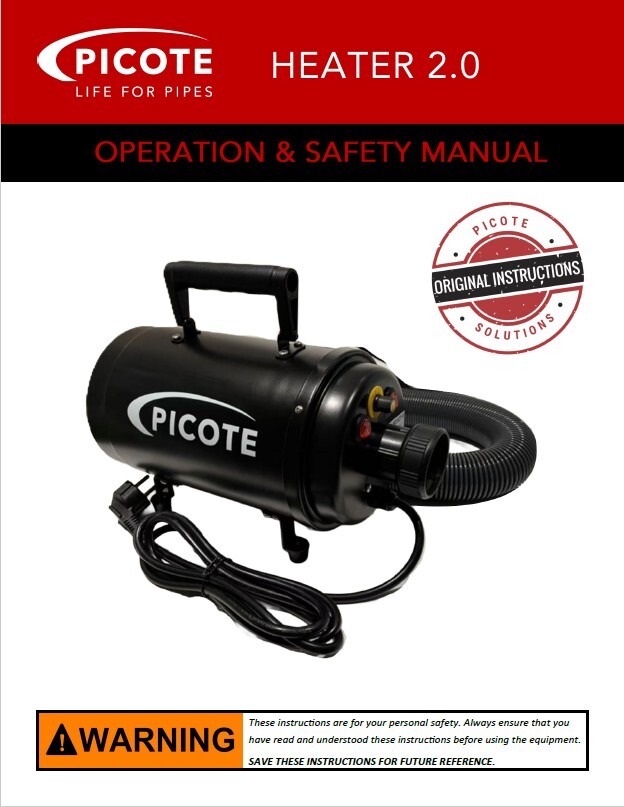

    Manual
    Download file
    US Catalog
    Download file

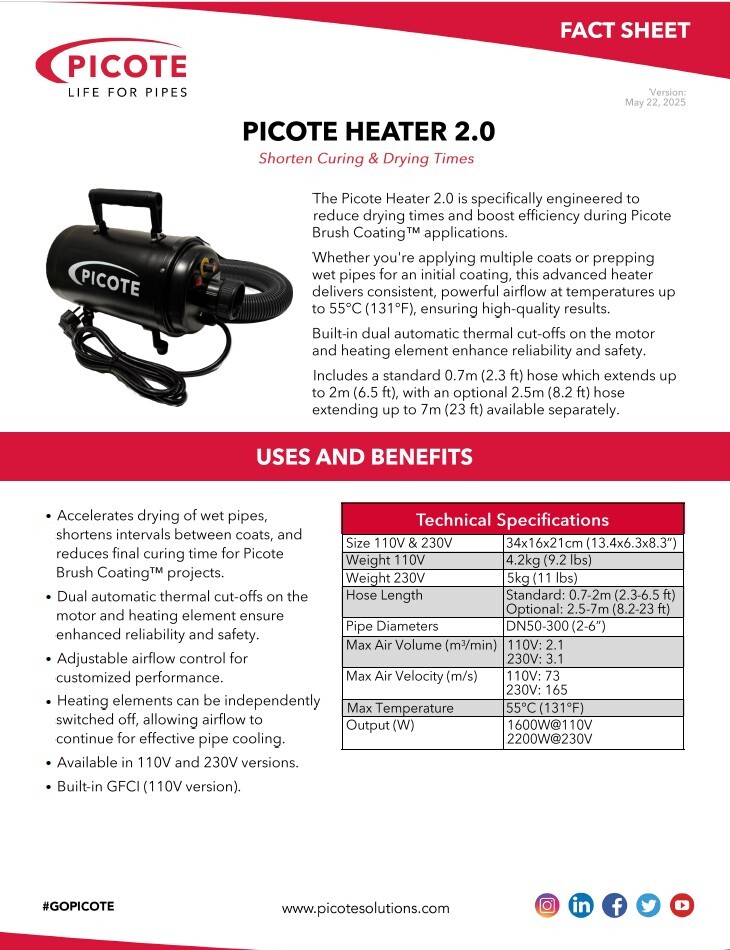

    Fact sheet
    Download file
    Metric Catalogue
    Download file
    German Catalogue
    Download file
