Uses and benefits

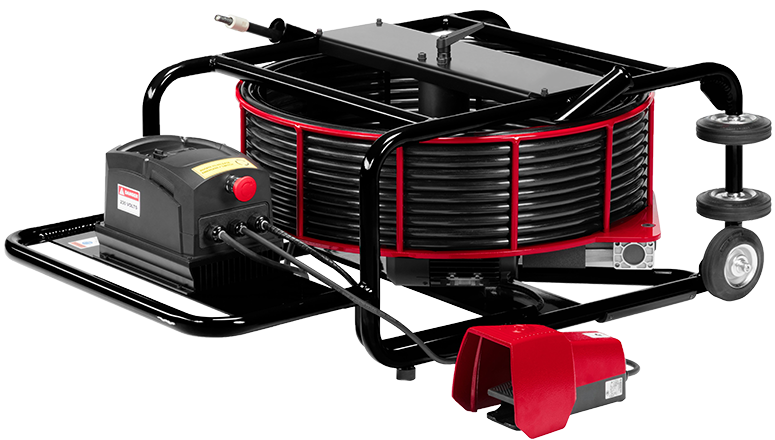

The Midi Cleaner is designed for high speed cleaning with a range of specialised Cleaning Chains. Excellent for unblocking and removing roots, as well as reinstating CIPP connections. Weighs 65kg / 144 lbs, 500 to 1500 rpm, 1.5kW output. Lightweight aluminium frame.
Standard safety features include: protective outer shaft casing making the cable safe to hold, shielded operator presence foot control, safety clutch, emergency stop switch.
Combine with a Picote Brush Coating™ Pump:
- Mini Coating Pump for DN50-200 (2-8”)
- Maxi Coating Pump for DN70-200 (3-8”)
- Xpress Coating Pump for DN50-200 (2-8”)
Please note: In some cases, you will require an 8mm/10mm or 12mm/10mm shaft connector to use certain 8mm (⅓") and 12mm (½") tools.
Technical spec
| Cleaning / Descaling |
DN50-150 (2-6") |
| Cutting / Reinstatement |
DN50-100 (2-4") |
| Picote Brush Coating™ |
DN50-200 (2-8")
|
| Range |
23m / 75ft + 10m /32ft extension
|
| |
|
How to use
The Picote Midi Cleaner is suitable for a wide range of work inside DN50-150 / 2-6" pipes:
Descaling | Root Cutting | Reinstatements* | Unblocking | Brush Coating** | Removing Failed Patches | Cutting Out Intruding Connections | Removing Metal Rebar | Removing Grout | Trimming Back Overshot CIPP Lining
Excellent 'First Fix' machine for removing baby wipes and other blockages.
*DN50-100 / 2-4" pipes
**DN50-200 / 2-8" pipes
Original Standard Chain
Original Standard Chains available for⅓", ⅜" & ½" Shaft
Cyclone Standard Chain
Cyclone Standard Chains available for⅓", ⅜" & ½" Shaft
Original Premium Chain
Original Premium Chains available for⅓", ½" & ¾" Shaft. For Midi Cleaner with ⅜" Shaft, use a Shaft Connector
Tiger Original Chain
Tiger Original Chains available for⅓", ⅜" & ½" Shaft
Tiger Drill Chain
Tiger Drill Chains available for ⅓", ⅜" & ½" Shaft
Original PVC Chain
Original PVC Chains available for⅓", ⅜" & ½" Shaft
3D Premium Chain
3D Premium Chains available for⅓" & ½" Shaft. For Midi Cleaner with ⅜" Shaft use a Shaft Connector
3D PVC Chain
3D PVC Chains available for⅓" & ½" Shaft. For Midi Cleaner with ⅜" Shaft use a Shaft Connector
Cyclone Premium Chain
Cyclone Premium Chains available for⅓" & ½" Shaft. For Midi Cleaner with ⅜" Shaft use a Shaft Connector.
Cyclone PVC Chain
Cyclone PVC Chains available for⅓", ⅜" & ½" Shaft
Tiger Cyclone Chain
Tiger Cyclone Chains available for⅓", ⅜" & ½" Shaft
Shaft Connector
Shaft Connectors available for ⅓", ⅜" & ½" shafts (8mm, 12mm & 18mm shafts). Not suitable for Mini Cleaner.
Sleeve
Sleeves for shafts. Available for ⅓", ⅜" & ½" shafts (8mm, 12mm & 18mm shafts). Not suitable for Mini Cleaners.
Flexible Shaft Extension
Extension shafts available for all Miller models except the Mini Cleaner.
Replacement Flexible Shaft
Replacement Flexible Shafts available for all Miller models.
Leader
Leaders used to connect tools quickly. Available in ⅓", ⅜", ½" & ¾" (8, 10, 12 & 18mm) shaft sizes
Maxi Pump Bracket
Maxi Pump Bracket attaches the Maxi Coating Pump to a Midi Cleaner or Super Midi
Shaft Lubricant
Shaft Lubricant Oil, for rotating Miller shafts
