Uses and benefits
The Picote Super Mini Miller is a high speed, high torque machine for cleaning, descaling and removing roots in smaller pipes. Add the Mini Coating Pump to offer the Picote Brush Coating™ System. Weighs 27kg / 60 lbs, 500 to 2900 rpm, 11W output. Lightweight aluminum frame.
Standard safety features include: protective outer shaft casing making the cable safe to hold, shielded operator presence foot control, safety clutch, emergency stop switch.
The Picote Super Mini Cleaner was specifically designed for plumbers working in smaller diameter pipes! Thanks to its highly flexible 8mm shaft casing, working in DN32 (1¼") to DN75 (3") pipes is extremely easy, even with multiple 90° bends and P-traps as small as DN50!
Technical spec
|
Cleaning / Descaling
Super Mini Miller
Super Mini Cleaner
|
DN50-100 (2-4")
DN32-75 (1¼-3")
|
|
Cutting / Reinstatement
Super Mini Miller
Super Mini Cleaner
|
DN50-75 (2-3")
DN32-75 (1¼-3")
|
|
Picote Brush Coating™
Super Mini Miller
Super Mini Cleaner
|
DN50-150 (2-6")
DN32-75 (1¼-3")
|
|
Range
Super Mini Miller
Super Mini Cleaner
|
16m / 50ft + 10m /32ft extension
16m / 50ft no extension
|
| Additional Models |
Mini Miller, Mini Miller +C, Super Mini Miller +C, Mini Cleaner, Mini Cleaner+C, Super Mini Cleaner+C |
How to use
The Picote Super Mini Miller is suitable for a wide range of work inside DN50-150 / 2-6" pipes. The Picote Battery Mini Cleaner is suitable for a range of work inside DN32-75 (1¼-3") pipes:
Descaling | Root Cutting | Reinstatements | Unblocking | Brush Coating | Removing Foreign Objects |Trimming Back Overshot CIPP Lining
Excellent 'First Fix' machines for removing baby wipes and other blockages in small pipes.
110v or 230v depending on region. USA 15 Amp. 16 Amp transformer required in U.K.
The Picote Super Mini Cleaner was specifically designed for plumbers working in smaller diameter pipes! Thanks to its highly flexible 8mm shaft casing, working in DN32 (1¼") to DN75 (3") pipes is extremely easy, even with multiple 90° bends and P-traps as small as DN50!
Mini Coating Pump
Combine with Mini Miller or Mini Cleaner.

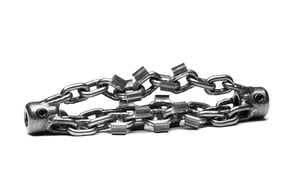

Original Standard Chain
Original Standard Chains available for⅓", ⅜" & ½" Shaft

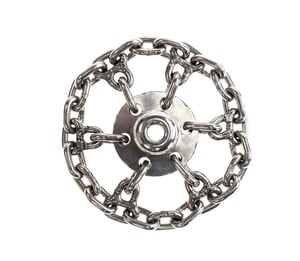

Cyclone Standard Chain
Cyclone Standard Chains available for⅓", ⅜" & ½" Shaft
Original Premium Chain
Original Premium Chains available for⅓", ½" & ¾" Shaft. For Midi Cleaner with ⅜" Shaft, use a Shaft Connector
Tiger Original Chain
Tiger Original Chains available for⅓", ⅜" & ½" Shaft

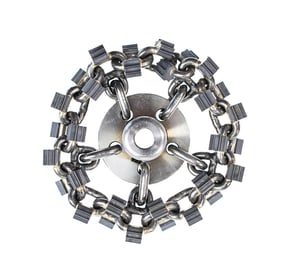

Tiger Drill Chain
Tiger Drill Chains available for ⅓", ⅜" & ½" Shaft
Original PVC Chain
Original PVC Chains available for⅓", ⅜" & ½" Shaft
3D Premium Chain
3D Premium Chains available for⅓" & ½" Shaft. For Midi Cleaner with ⅜" Shaft use a Shaft Connector
3D PVC Chain
3D PVC Chains available for⅓" & ½" Shaft. For Midi Cleaner with ⅜" Shaft use a Shaft Connector
Cyclone Premium Chain
Cyclone Premium Chains available for⅓" & ½" Shaft. For Midi Cleaner with ⅜" Shaft use a Shaft Connector.
Cyclone PVC Chain
Cyclone PVC Chains available for⅓", ⅜" & ½" Shaft
Tiger Cyclone Chain
Tiger Cyclone Chains available for⅓", ⅜" & ½" Shaft
Special Drill Head Cutter
Special Drill Heads for reinstatements and cleaning. Available for ⅓" & ½" (8 & 12mm) shafts.
Shaft Connector
Shaft Connectors available for ⅓", ⅜" & ½" shafts (8mm, 12mm & 18mm shafts). Not suitable for Mini Cleaner.

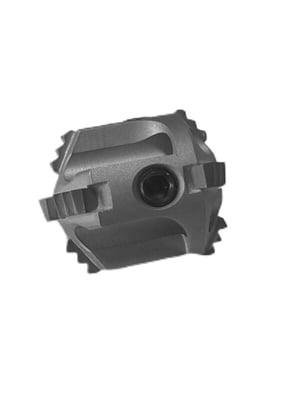

Tiger Bore
Tiger Bores for reinstatements and cleaning. Available for ⅓" & ½" (8 & 12mm) shafts.
Flexible Shaft Extension
Extension shafts available for all Miller models except the Mini Cleaner.
Replacement Flexible Shaft
Replacement Flexible Shafts available for all Miller models.
Leader
Leaders used to connect tools quickly. Available in ⅓", ⅜", ½" & ¾" (8, 10, 12 & 18mm) shaft sizes
Pipe Cutter
Pipe Cutter/Pipe Cutter Ultra Flex. Use to cut overshot liners in bent or straight sections of pipe.

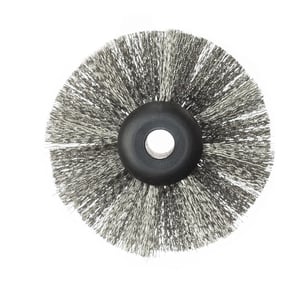

Wire Cleaning Brushes
Metal cleaning brush for removing fine dust or light mineral deposits in PVC & fragile pipes. Also used for Picote Brush Coating® preparation.
Shaft Lubricant
Shaft Lubricant Oil, for rotating Miller shafts
