    +C combo

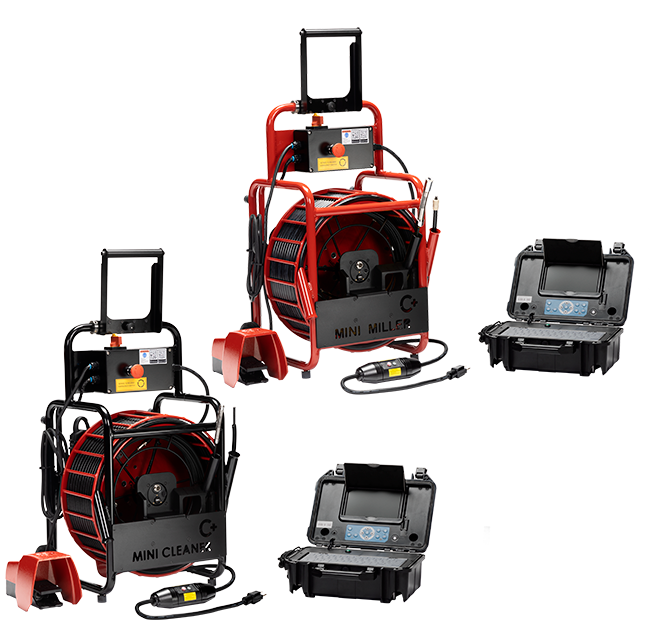

    Mini Cleaner+C & Mini Miller+C

    The Picote Mini Miller +C and Mini Cleaner +C units feature an integrated 30m (98’) color camera that makes viewing of cleaning and cutting jobs easier and helps to make Picote Brush Coating™ setup even simpler.

    The Mini Miller +C’s color, self-leveling camera head has a 512hz integrated sonde while the Mini Cleaner +C features a smaller color camera head that allows it to follow the Mini Cleaner through DN50 (2”) P-traps & bends.

    Please see Mini Miller Range, Mini Cleaner Range and Battery Millers pages for further information on each system.

    Contact us
    Specification Images & videos Downloads Where to use Accessories
    Uses and benefits
    • On-board camera system makes for convenient viewing of cleaning, cutting, & coating jobs.
    • Waterproof protective camera case with carrying handle.*
    • Digitial footage counter.
    • On screen time & date display.
    • Stainless steel camera heads (IP68 class).
    • Video and snapshot capture modes.
    • LED camera lights with brightness control.
    • Also available as a retrofit upgrade package for standard Mini Cleaners and Mini Millers.
    • You can use both hands on the shaft due to the operator presence foot control pedal that is standard on all Picote Millers.



    Technical spec
    Camera Cable 30m (98')
    Recording SD Card (32GB Max)
    Camera Power Battery with 12V charger
    Battery Life Up to 8 hours
    Miller Power UK/US: 110/120V, 15 Amp
    EU: 220/230V, 16 Amp
    Lighting LEDs with brightness control
    Capture Options Video and snapshot
    Screen Size 17.8cm (7") color monitor
    Mini Miller +C Camera
    Camera Head 23mm (⁷⁄₈"), color, self leveling
    Locating 512 hz integrated sonde
    Lighting 12 LEDs with brightness control
    Vision Angle 120º
    Weight 31¹⁄₂ kg (69¹⁄₂ lbs)
    Mini Cleaner +C Camera
    Camera Head 14mm (⁹⁄₁₆"), color
    Lighting 8 LEDs with brightness control
    Vision Angle 82º
    Weight 31kg (69 lbs)
    Battery Mini Miller +C Mini Cleaner +C Battery Mini Cleaner +C Mini Miller+C Mini Cleaner +C upgrade kit Mini Miller+C upgrade kit

    Downloads

    US Catalog
    Download file
    Manual
    Download file
    Quick Guides
    Download file

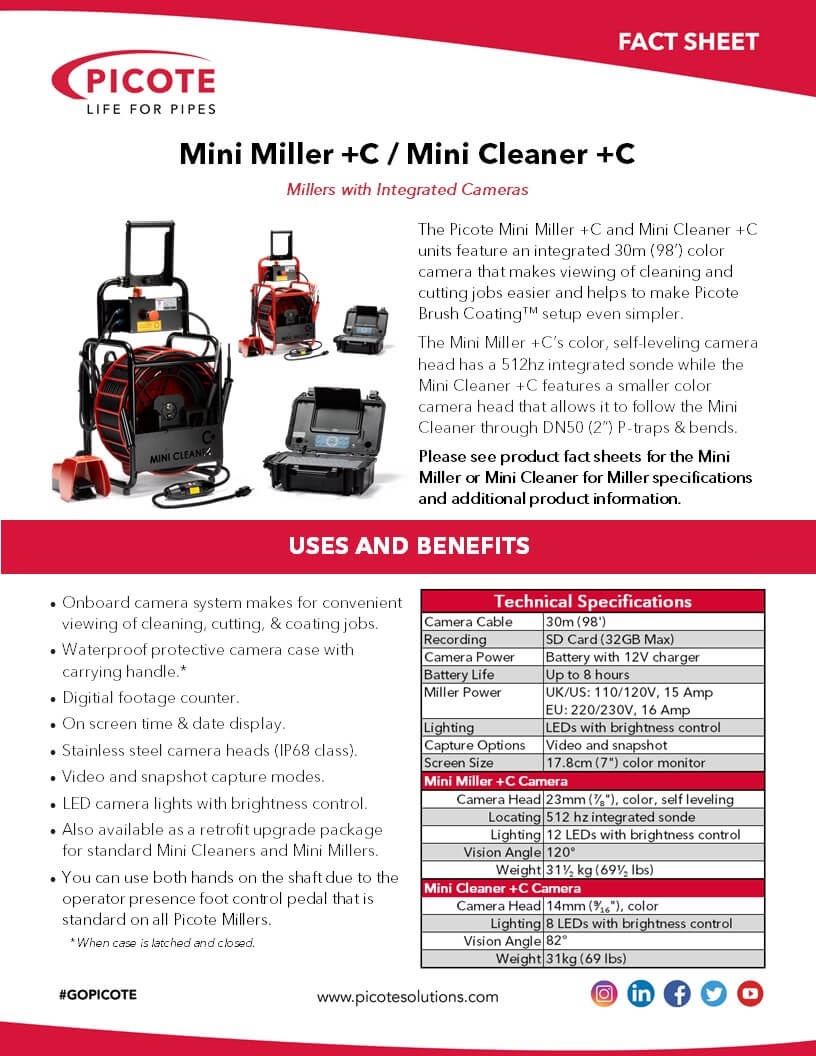

    Fact sheet
    Download file
    Metric Catalogue
    Download file
    German Catalogue
    Download file
    Mini Coating Pump
    Combine with Mini Miller or Mini Cleaner.

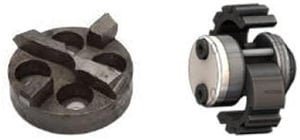

    Mini Smart Sweeper
    Versatile tool for tough cleaning, tuberculation, roots & uranic scale
    Original Standard Chain
    Original Standard Chains available for⅓", ⅜" & ½" Shaft
    Cyclone Standard Chain
    Cyclone Standard Chains available for⅓", ⅜" & ½" Shaft
    Original Premium Chain
    Original Premium Chains available for⅓", ½" & ¾" Shaft. For Midi Cleaner with ⅜" Shaft, use a Shaft Connector
    Tiger Original Chain
    Tiger Original Chains available for⅓", ⅜" & ½" Shaft
    Tiger Drill Chain
    Tiger Drill Chains available for ⅓", ⅜" & ½" Shaft
    Original PVC Chain
    Original PVC Chains available for⅓", ⅜" & ½" Shaft
    3D Premium Chain
    3D Premium Chains available for⅓" & ½" Shaft. For Midi Cleaner with ⅜" Shaft use a Shaft Connector
    3D PVC Chain
    3D PVC Chains available for⅓" & ½" Shaft. For Midi Cleaner with ⅜" Shaft use a Shaft Connector
    Cyclone Premium Chain
    Cyclone Premium Chains available for⅓" & ½" Shaft. For Midi Cleaner with ⅜" Shaft use a Shaft Connector.
    Cyclone PVC Chain
    Cyclone PVC Chains available for⅓", ⅜" & ½" Shaft
    Tiger Cyclone Chain
    Tiger Cyclone Chains available for⅓", ⅜" & ½" Shaft
    Special Drill Head Cutter
    Special Drill Heads for reinstatements and cleaning. Available for ⅓" & ½" (8 & 12mm) shafts.
    Shaft Connector
    Shaft Connectors available for ⅓", ⅜" & ½" shafts (8mm, 12mm & 18mm shafts). Not suitable for Mini Cleaner.
    Sleeve
    Sleeves for shafts. Available for ⅓", ⅜" & ½" shafts (8mm, 12mm & 18mm shafts). Not suitable for Mini Cleaners.
    Tiger Bore
    Tiger Bores for reinstatements and cleaning. Available for ⅓" & ½" (8 & 12mm) shafts.
    Flexible Shaft Extension
    Extension shafts available for all Miller models except the Mini Cleaner.
    Replacement Flexible Shaft
    Replacement Flexible Shafts available for all Miller models.
    Leader
    Leaders used to connect tools quickly. Available in ⅓", ⅜", ½" & ¾" (8, 10, 12 & 18mm) shaft sizes
    Pipe Cutter
    Pipe Cutter/Pipe Cutter Ultra Flex. Use to cut overshot liners in bent or straight sections of pipe.
    Wire Cleaning Brushes
    Metal cleaning brush for removing fine dust or light mineral deposits in PVC & fragile pipes. Also used for Picote Brush Coating® preparation.
    Shaft Lubricant
    Shaft Lubricant Oil, for rotating Miller shafts
